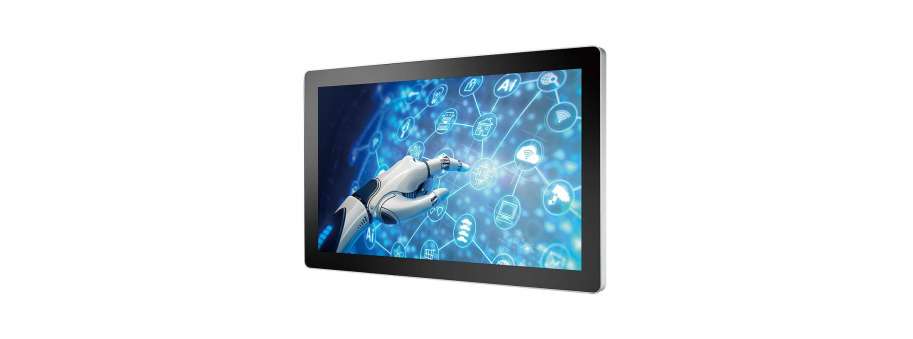

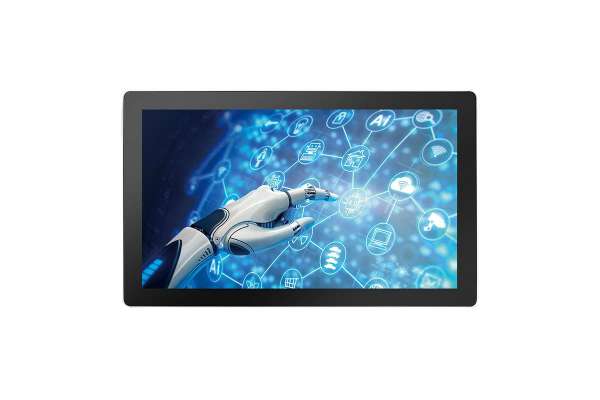

15.6" PC 1366 x 768 (16:9) WXGA TFT LED LCD multi-touch panel PC with -5°C to 55°C operating temperature Vecow MTC-7015W
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| MTC-7015W-8665UE | Промисловий панельний комп'ютер Vecow MTC-7015W, 15.6" Fanless Multi-Touch Panel PC, Intel® Core™ i7-8665UE, 2 GigE LAN, 4 USB, 2 COM, DC 9V to 48V | 132 741,0 | |
| MTC-7015W-8365UE | Промисловий панельний комп'ютер Vecow MTC-7015W, 15.6" Fanless Multi-Touch Panel PC, Intel® Core™ i5-8365UE, 2 GigE LAN, 4 USB, 2 COM, DC 9V to 48V | 119 196,0 | |
| MTC-7015W-8145UE | Промисловий панельний комп'ютер Vecow MTC-7015W, 15.6" Fanless Multi-Touch Panel PC, Intel® Core™ i3-8145UE, 2 GigE LAN, 4 USB, 2 COM, DC 9V to 48V | 106 102,0 | |
| MTC-7015W-4305UE | Промисловий панельний комп'ютер Vecow MTC-7015W, 15.6" Fanless Multi-Touch Panel PC, Intel® Celeron 4305UE, 2 GigE LAN, 4 USB, 2 COM, DC 9V to 48V | 94 363,5 |
MTC-7000 Series is powered by 8th generation Intel® Core™ i7/i5/i3 processor (Whiskey Lake) and features leading performance and innovative power management functions. It supports projected capacitive multi-touch screen, fanless design, -5°C to 55°C operating temperature, IP65 certified panel protection, 9V to 48V wide range DC-in power input. MTC-7000 Series is outfitted with 2 GigE LAN, 4 10G USB, 2 COM for flexible connectivity.
- 15.6" 1366 x 768 (16:9) WXGA TFT LED LCD
- 10-point Projected Capacitive Multi-touch Screen
- 8th Generation Intel® Core™ i7/i5/i3 U-series Processor (Whiskey Lake)
- Fanless design supports -5°C to 55°C operating temperature
- 4-port 10G USB 3.1 Gen 2
- Easy-access external SSD/HDD kit
- DC 9V to 48V wide range power input
- Supports Panel Mount and VESA Mount (75 x 75, 100 x 100)
- IP65 Front Panel Protection
- 2 Mini PCIe for WiFi/4G/3G/LTE/GPRS/UMTS
Additional information
Panel |
|
| Panel type | WXGA TFT LED Type LCD |
| Size | 15.6" |
| Max. Resolution | 1366 x 768 |
| Display Color | 16.7M |
| Brightness (cd/m2) | 400 nits |
| Viewing Angles (H/V) | 170/160 |
| Contrast Ratio | 500:1 |
Touch Screen |
|
| Touch Screen Type | 10-point Projected Capacitive |
| Transparency | ≧ 91% |
| Surface Hardness | 7H Surface Hardness |
| Control Interface | USB Type |
System |
|
| Processor | Quad Core Intel® Core™ i7/i5/i3 U-series Processor (Whiskey Lake) |
| Chipset | Intel® Cannon Lake PCH-LP |
| Memory | 1 DDR4 2400MHz SO-DIMM, up to 32GB |
| Graphics Processor | Intel® UHD Graphics 620 |

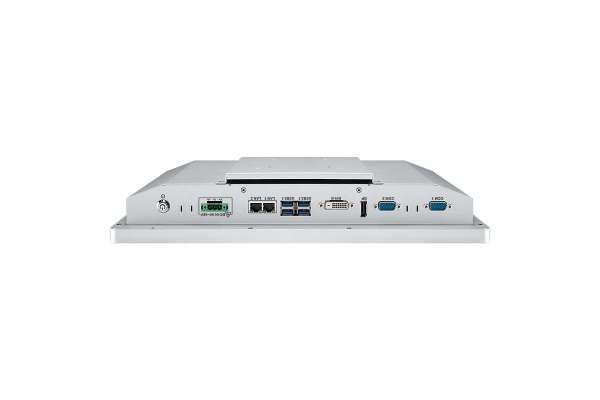

I/O Interface |
|
| Serial | 2 RS-232/422/482 (ESD 8kV, DB9 Type) |
| USB | 4 USB 3.1 Gen 2, Type A |
| LED | Power, HDD |
| Display |
- DVI-D：Up to 1920 x 1200 @60Hz - DisplayPort：Up to 4096 x 2304 @60Hz |
Expansion |
|
| Mini PCIe |
2 Mini PCIe Socket： - 1 Full-size for PCIe/USB/SIM Socket - 1 Full-size for PCIe/USB/SATA |
Storage |
|
| SATA | 1 SATA III (6Gbps) |
| mSATA | 1 SATA II (Full Size Mini PCIe, 6Gbps) |
| Storage Device | 1 2.5" SSD/HDD Kit |
Ethernet |
|
| LAN 1 | Intel® I219LM GigE LAN supports iAMT 12.0, RJ45 Type |
| LAN 2 | Intel® I210LM GigE LAN, RJ45 Type |
Power |
|
| Power Input | 9V to 48V DC-in |
| Power Interface | 3-pin Terminal Block (V+/V-/GND) |
Others |
|
| TPM | Optional Infineon SLB9665 supports TPM 2.0, LPC Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported |
Software Support |
|
| OS | Windows 10, Linux |
Mechanical |
|
| Dimensions | 391.5mm x 242.0mm x 66.1mm (15.41" x 9.53" x 2.60") |
| Weight | 3.6 kg (7.94 lb) |
| Mounting |
- Panel mount - VESA mount (75 x 75, 100 x 100) |
Environment |
|
| Operating Temperature | -5°C to 55°C (-23°F to 131°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @55°C |
| Shock |
- IEC 60068-2-27 - 20G, Half-sine, 11ms |
| Shock |
- IEC 60068-2-64 - Non-operation : 10Hz to 200Hz, 1Grms, X, Y, Z, 30 mins each Axis |
| EMC | CE, FCC |
