15.6" All-in-One Panel PC with Rockchip 3399 processor and Android 10 OS Advantech PPC-115W

Price and avalability

Partnumber Description Price VAT incl Avalability
PPC-115W-PK91A 15.6" Panel PC with RK3399 and Andorid 10  37 268,2
PPC-115W-PK91B 15.6" FHD Panel PC with RK3399 and Andorid 10  41 843,9
PPC-115W-PK91BU 15.6" FHD Panel PC with RK3399 and Andorid 10  45 861,7

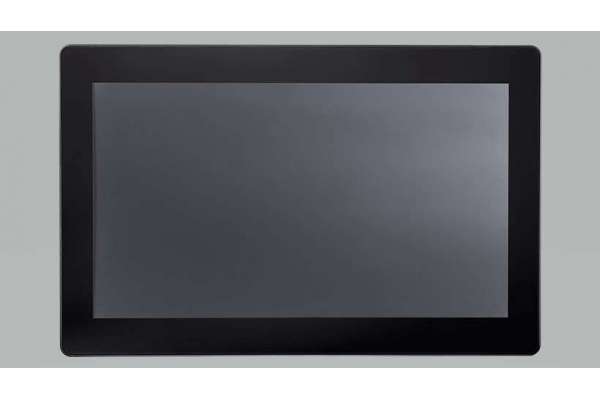

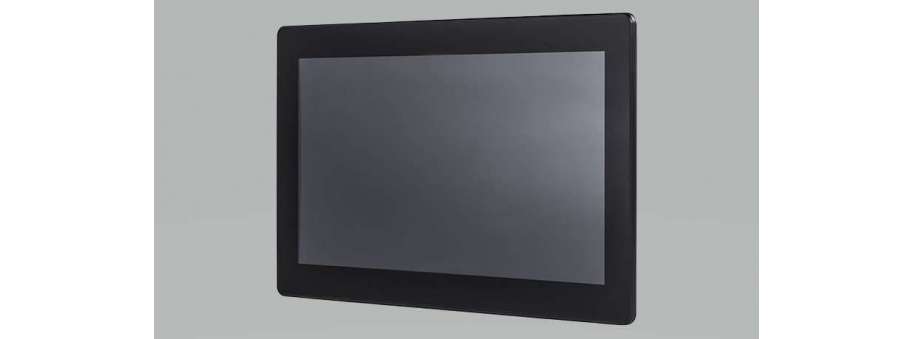

PPC-115W is 15.6" All-in-One PPC with Rockchip 3399 processor and Android 10 OS pre-installed. Featuring 15.6" wide screen display and 10 points Pcap multi-touch, IP65 rated front panel, VESA or panel mouting support, PPC-115W provides friendly experience and reliable integration possibility. External 2 x USB 2.0/3.0,1 x RS-232 expands more flexible connection. Pre-installed Android 10, PPC-115W helps customer visiting web information quickly in various IoT applications.

  • True flat wide display screen with Pcap multi-touch
  • Embedded Rockchip 3399 processor, Dual-core Cortex-A72 up to 1.8GHz and Quad-core Cortex-A53 up to 1.4GHz
  • Onboard 2GB LPDDR4-1333 memory, 16GB eMMC NAND Flash
  • IP65 rated front panel protection
  • Supports VESA 100 and panel mounting(optional)
  • Supports Linux or Android 10 pre-installed
PPC-115W-PK91A PPC-115W-PK91B PPC-115W-PK91BU

Luminance (cd/m2)

220

800 800

Max. Resolution

1366 x 768

1920 x 1080

1920 x 1080

Viewing Angle (H/V°)

90/50

170/170

170/170

Additional information

System

CPU
  • Rockchip RK3399
  • Big.Little architecture: Dual Cortex-A72 + Quad Cortex-A53, 64-bit CPU
GPU Mali-T860
Memory On-board 2GB LPDDR4-1333
Network (LAN) 1 x 10/100/1000 Mbps

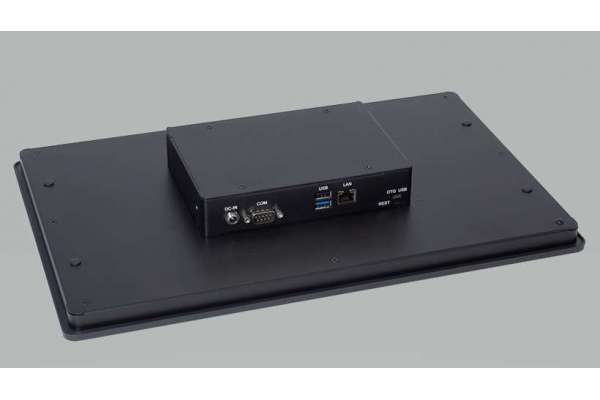

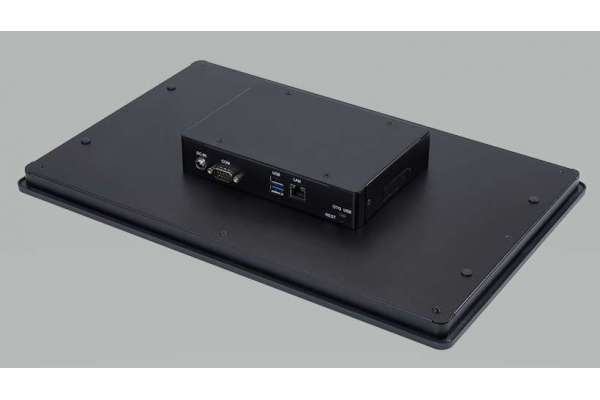

I/O ports
  • 1 x USB 2.0;
  • 1 x USB 3.0; 2 x USB 2.0 (internal by request)
  • 1x mirco USB OTG
  • 1 x RS 232;
  • 1 x RS232 (internal by request)
  • 1 x DC in 5 x GPIO (by request) (3.3V TTL level) Expansion
Expansion 1 x M.2 2230 Key E slot for wireless card
Watchdog Timer Max timeout: 21s, Default timeout: 10s

General

Storage 16GB eMMC NAND Flash; 1x Micro SD slot
Input Voltage 12VDC, 36W adapter
OS Android 10 (default), Linux
Weight 2.6kg
Dimensions 402.00 x 260.00 x 53.2 mm
Mounting VESA 100,Panel mounting (optional)

Display

Size 15.6" Panel
Brightness 220 or 250
Contrast Ratio 400 or 800
Backlight Lifetime 15,000 hrs (Min.)

Touch screen

Type Projected Capacitive Multi-touch
Light Transmission ≥ 88%
Interface USB

Environment

Operating Temperature 0 ~ 50°C
Storage Temperature -20 ~ 60°C
Humidity 10 ~ 95% @ 40°C (non-condensing)
Shock Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration Operating Random Vibration Test 5~500Hz, 0.5Grms , follow IEC 60068-2-64
EMC CE, FCC Class B, BSMI
Safety CB, UL, CCC, BSMI
Front panel IP65 compliant
