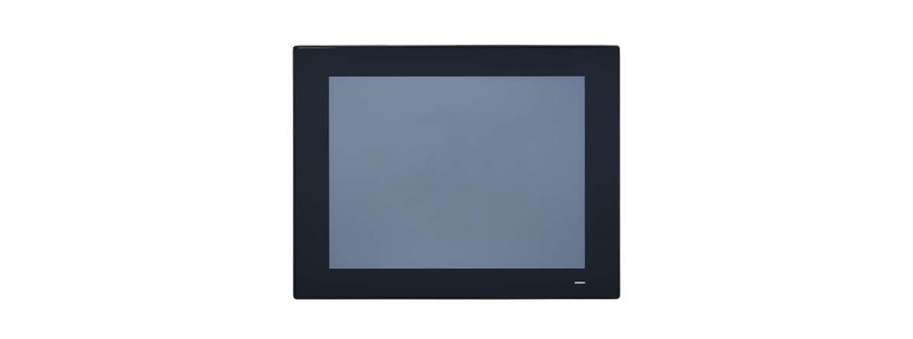

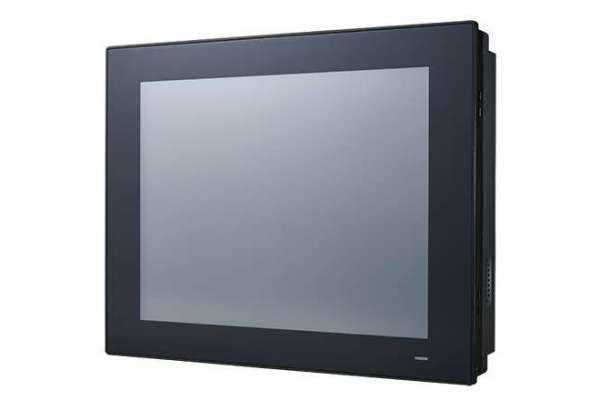

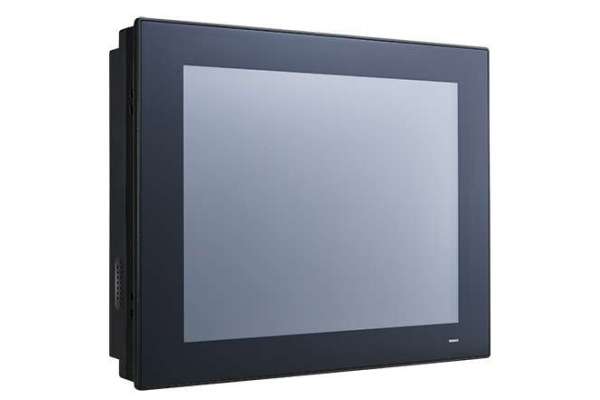

12.1" Fanless XGA TFT LCD with resistive touchscreen Panel PC on Intel® Atom™ E3940 Processor Advantech PPC-3120

Manufacturer: Advantech
Facebook Twitter Linkedin Mail

Price and avalability

Partnumber Description Price VAT incl Avalability
PPC-3120-RE9A Панельний комп'ютер Adavntech PPC-3120, 12.1" Atom E3940 Fanless with XGA R-touch  62 947,9 Доступно
PPC-3120-RE9B Atom E3940 Fanless with 12.1" XGA R-touch  64 395,3
PPC-3120-RE9AU Панельний комп'ютер 12.1" Adavntech PPC-3120, Atom E3940 Fanless with XGA R-touch  65 869,8
PPC-3120-RE9BU Atom E3940 Fanless with 12.1" XGA R-touch  67 317,2

The PPC-3120 is a 12.1" fanless panel PC equipped with a high-performance Intel® Atom™ E3940 quad-core processor that supports wide power input range (9 ~ 32 VDC). The provision of multiple I/O, including 4 x COM, 4 x USB 3.0, 1 x isolated RS-422/485, and dual Intel® Gigabit Ethernet, ensures easy integration and connectivity.

  • 12.1" XGA TFT LCD with resistive touchscreen
  • Intel® Atom™ E3940, 1.6 GHz, processor
  • Up to 8 GB DDR3L 1600/1866 SDRAM
  • Supports 1 x internal 2.5" SATA HDD and 1 x mSATA
  • Fanless design with low power consumption
  • Wide range DC support (9 ~ 32 VDC)
  • 1 x isolated RS-422/485 with automatic flow control and dual Intel GbE
  • Optional GPIO (8 channels, TTL level)
  • Optional PCI/PCIe x1 expansion kit

Additional information

System
CPU Intel® Atom™ E3940 quad core
Frequency 1.6 GHz
L2 Cache 2 MB
Memory 1 x SODIMM DDR3L 1600/1866 MHz (max. 8 GB)
Storage
  • 1 x 2.5" SATA bay
  • 1 x mSATA bay
Network (LAN) 2 x 10/100/1000 Mbps Ethernet (Intel I210AT A ver.) or 2.5GbE (Intel I225LM B ver.)

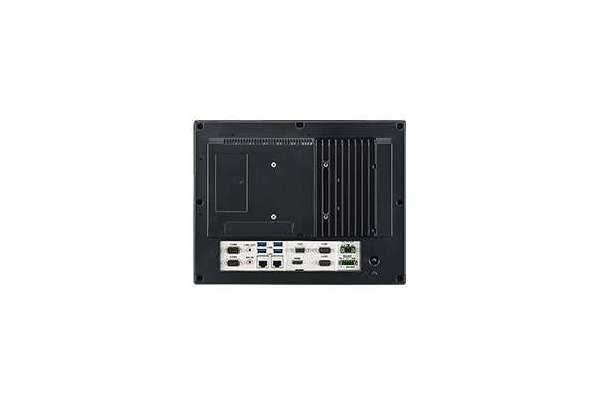

I/O
  • 5 x Serial ports: 4 x RS-232, 1 x isolated RS-422/485 (Adjustable through BIOS)
  • 4 x USB 3.0
  • 1 x Line-out,
  • 1 x Mic-in
  • 1 x VGA,
  • 1 x HDMI
  • 1 x GPIO (8 channels, TTL level, internal)
Expansion
  • 1 x Mini PCIe
  • Optional: 1 x PCIe x1 or 1 x PCI
Watchdog Timer 255 timer levels, set up by software
Speaker 2 x 1W

Physical Characteristics
Dimensions 317 x 246 x 60.5 mm (12.4 x 9.7 x 2.4 in)
Weight 3.4 kg (7.5 lb)

OS Support
OS Support Microsoft® Windows 10 (64-bit), Win 10 LTSC, Linux, Android 8.1

Power Consumption
Input Voltage 9 ~ 32 VDC
Power Consumption 32W (Burn-in test 8.0 in Windows 10 64bit)

LCD
Display Type 12.1" TFT LED panel with LED backlight
Max. Resolution 1024 x 768
Viewing Angle 89 (left), 89 (right), 89 (up), 89 (down)
Luminance (cd/m2 ) 600
Contrast Ratio 1000
Backlight Lifetime 50,000 hr (typical)

Touchscreen
Touch Type 5-wire resistive touch
Light Transmission 80±5% at 550nm wavelength
Controller USB interface
Durability (Touches) Greater than 35 million touches in one location without failure

Environment
Operating Temperature 0 ~ 50 °C (32 ~ 122 °F) with 2.5" SATA SSD
Storage Temperature -40 ~ 60 °C (-40 ~ 140 °F)
Relative Humidity 10 ~ 95% @ 40 °C (non-condensing)
Shock Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration Operating Random Vibration Test 5~500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64
EMC CE, FCC Class B, BSMI
Safety CB, CCC, BSMI, UL
Front Panel Protection IP66 compliant
