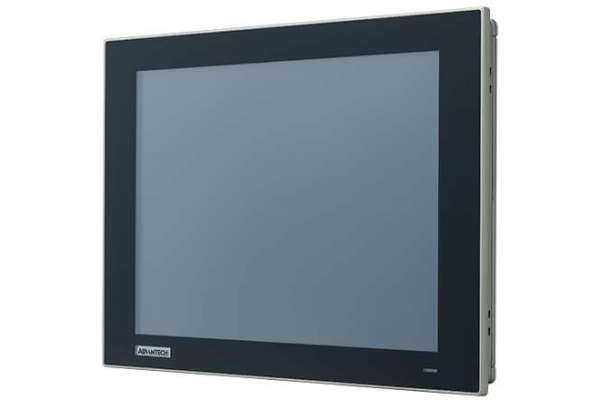

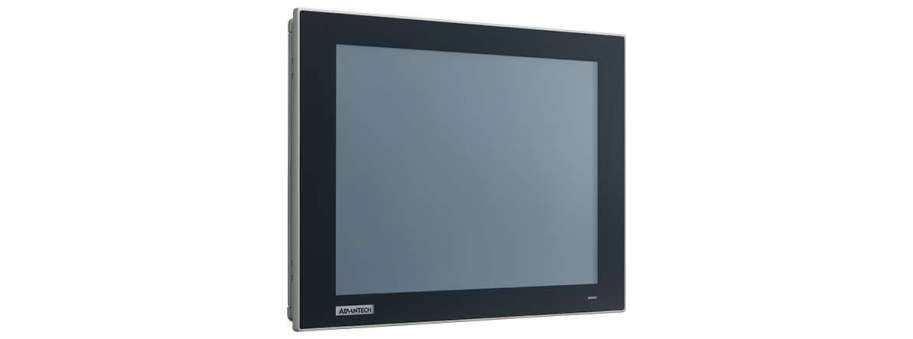

12" XGA Industrial Monitor with Resistive Touch Control, Direct HDMI, DP, and VGA Ports Advantech FPM-212

Price and avalability

Partnumber Description Price VAT incl Avalability

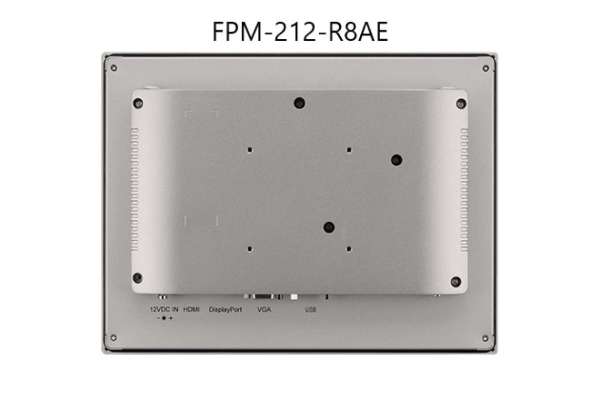

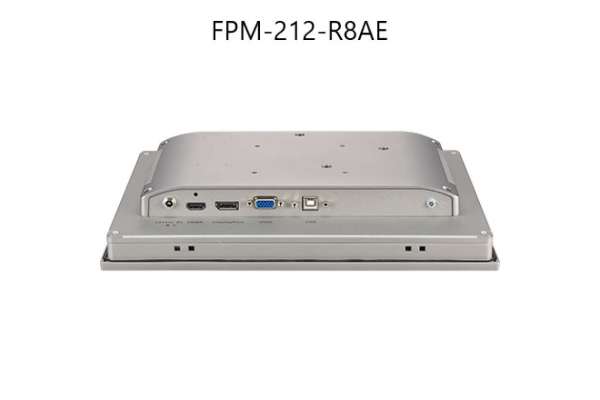

FPM-212-R8AE Промисловий дисплей Advantech FPM-212-R8AE 12.1" XGA Ind. Monitor, w/Resistive TS  40 523,5
FPM-212-R9AE Промисловий дисплей Advantech 12.1" XGA Ind. Monitor, w/Resistive TS(24Vdc)  54 380,3

In IIoT and Industry 4.0, more and more customers need data to be visualized to help process management and decision making. The FPM-200 series is an industrial-grade monitor with sleek, simple lines and a true-flat touchscreen. Equipped with durable resistive touch control and an IP66-rated front bezel, FPM-200 series is designed for intuitive operation in industrial environments such as smart factory and machine automation display applications.

  • 12" XGA TFT LED LCD with 50,000 backlight lifetime (FPM-212, FPM-217)
  • Direct HDMI, DP and VGA input interfaces
  • Anti-glare screen with tempered glass
  • Robust system with Die-casting aluminum chassis and IP66-rated aluminum alloy front bezel
  • Lockable I/O connectors
  • Slim design enables easy installation
  • Supports various mount options: panel, desktop, and VESA arm

Additional information

General

Certification BSMI, CCC, CE, FCC Class A, UL
Dimensions (W x H x D)

FPM-212: 311.8 x 238.0 x 53 mm (12.27 x 9.37 x 2.08 in)

Enclosure
  • Front panel: Die cast magnesium alloy
  • Rear cover: Die-casting aluminum
Mount Options Stand, Wall, Panel and VESA arm (75 x 75mm)
Power Input
  • FPM-2XX-R8AE : External 36 W power adapter, with AC 100 V ~ 240 V input and DC +12 V @ 3 A output (included)
  • FPM-2XX-R9AE: Terminal Block: 24 VDC input
Video Port HDMI, DP, and VGA
Weight (Net) 3.2 kg

Power Consumption

FPM-212-R8AE 17.91(idle), 19.01(Max)
FPM-212-R9AE 16.65(idle), 17.51(Max)

LCD Display

Display Type XGA TFT LCD
Display Size 12"
Max. Resolution 1024 x 768
Max. Color 16.2M
Viewing Angle (H/V °) 178/178
Luminance (cd/m2 ) 600
Backlight Life 50,000 hr
Contrast Ratio 1000:1

Touchscreen

Type 5-wire analog resistive
Interface USB
Light Transmission Above 75%
OS Support Windows XP, Vista,7, 8,10,XPe and Linux

Environment

Operating Temperature 0 ~ 50 °C (32 ~ 122 °F)
Storage Temperature -20 ~ 60 °C (-4 ~ 140 °F)
Humidity (Storage) 10 ~ 90% non-condensing
IP Rating IP-66 graded front panel
Vibration 5 ~ 500 Hz, 1 Grms (Operating, Random)
