12" (or 15") Fanless Panel PC with Intel® Celeron® J6412 Processor Advantech PPC-312 EHL

Manufacturer: Advantech
Facebook Twitter Linkedin Mail

Price and avalability

Partnumber Description Price VAT incl Avalability
PPC-312-RJ60A Панельний комп'ютер Advantech PPC-312 Intel Celeron J6412 fanless 12.1" Panel PC  59 690,2
PPC-312-PJ60A Панельний комп'ютер Advantech PPC-312 Intel Celeron J6412 fanless 12.1" PCT Panel PC  59 690,2
PPC-312-RJ60AU Панельний комп'ютер Advantech PPC-312 Intel Celeron J6412 fanless 12.1" Panel PC  60 990,3
PPC-315-RJ60A Панельний комп'ютер Advantech PPC-315 Intel Celeron J6412 fanless 15" Panel PC  66 503,4
PPC-315-PJ60A Панельний комп'ютер Advantech PPC-315 Intel Celeron J6412 fanless 15" PCT Panel PC  64 632,1 Доступно
PPC-315-RJ60AU Панельний комп'ютер Advantech PPC-315 Intel Celeron J6412 fanless 15" Panel PC  72 194,7

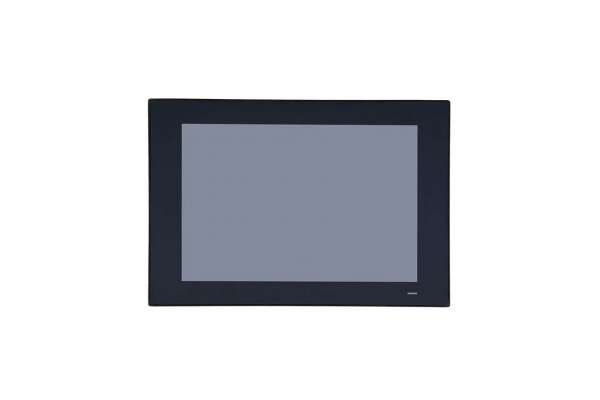

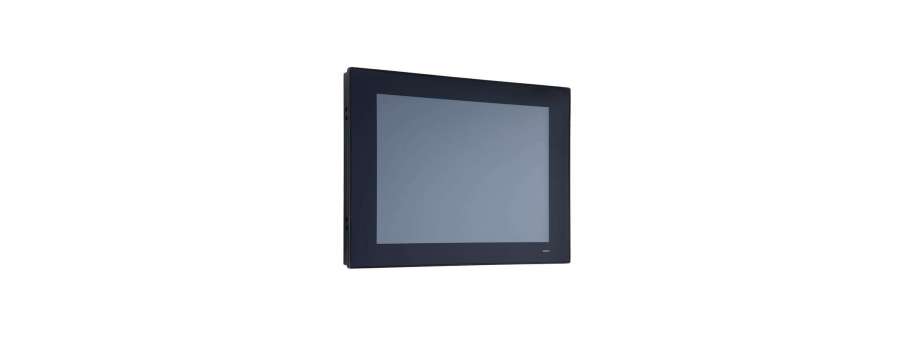

The PPC-312 EHL (PPC-315 EHL) is an industrial panel PC equipped with 12" XGA TFT LED LCD, powered by low-power Intel J6412 processer yet high performance computing system. Adopts whole aluminum alloy enclosure, with rear cover assembled for easier maintain yet all in one piece through reliable fixation, realizes ultra slim compact fanless design. Despite satisfying USB 2.0&3.0 ports, PPC-312 EHL (PPC-315 EHL) also provides type C that enables advanced compatibility in diverse industrial applications. Moreover, to provide enhanced function expansion, PPC-312 EHL embedded with M.2 M-Key and E-Key slots support for storage expansion and wireless module.

  • Industrial-grade 12" XGA TFT LCD with 30K backlight lifetime (PPC-312 EHL)
  • Industrial-grade 15" XGA TFT LCD with 70K backlight lifetime (PPC-315 EHL)
  • Durable true-flat touchscreen with 5-wire resistive/projected capacitive touch control
  • Intel® Celeron® J6412 quad-core, 2.0 GHz, processor (PPC-312 EHL)
  • Intel® Celeron® J6412 quad-core, 2.6 GHz, processor (PPC-315 EHL)
  • Up to 32 GB DDR4 SDRAM
  • 1 x RS-232, 1 x RS-232/422/485, 2 x USB 2.0, and 2 x USB 3.0
  • Compact, fanless design with solid aluminum alloy enclosure and IP66-rated front panel
  • Supports E-key for wireless module
  • Supports expansion via M.2 slot
  • Supports Windows Embedded and Android OS

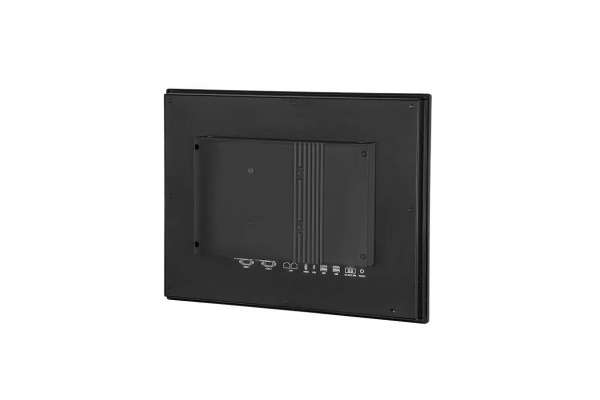

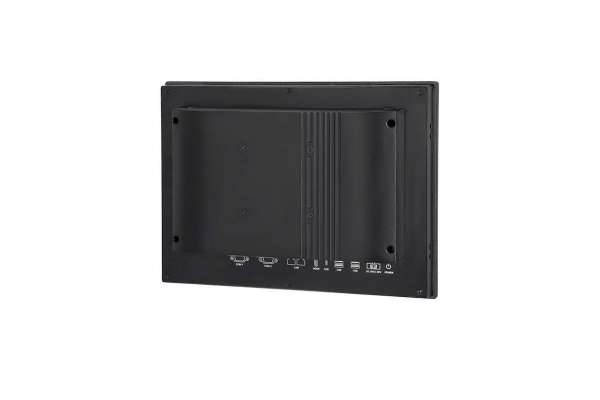

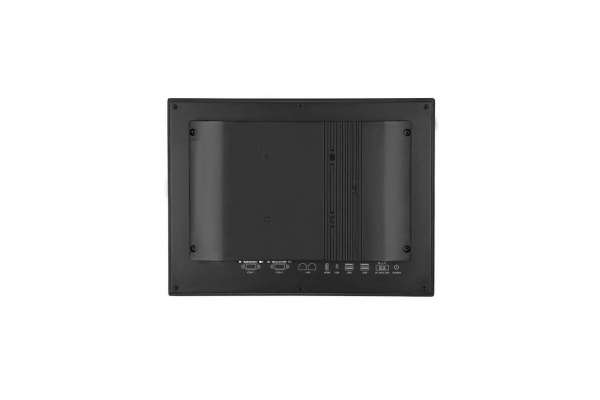

  • Supports VESA 75 x 75 mounting holes

Additional information

System

 PPC-312-RJ60A PPC-312-PJ60A PPC-315-RJ60A PPC-315PJ60A
CPU Intel® Celeron® J6412 quad core Intel® Celeron® J6412 quad core Intel® Celeron® J6412 quad core Intel® Celeron® J6412 quad core
Frequency 2.0 GHz 2.0 GHz 2.6 GHz 2.6 GHz
L2 Cache 2 MB 2 MB 2 MB 2 MB
Memory 1 x SDRAM DDR4 3200 MHz (max. 32G) 1 x SDRAM DDR4 3200 MHz (max. 32G) 1 x SDRAM DDR4 3200 MHz (max. 32G) 1 x SDRAM DDR4 3200 MHz (max. 32G)
Storage 1 x 2.5" SATA bay (optional; requires a bracket module for installation) 1 x M.2 slot: M key for storage (SATA only, 2242 & 2280) 1 x 2.5" SATA bay (optional; requires a bracket module for installation) 1 x M.2 slot: M key for storage (SATA only, 2242 & 2280) 1 x 2.5" SATA bay (optional; requires a bracket module for installation) 1 x M.2 slot: M key for storage (SATA only, 2242 & 2280) 1 x 2.5" SATA bay (optional; requires a bracket module for installation) 1 x M.2 slot: M key for storage (SATA only, 2242 & 2280)
Network (LAN) 2 x 10/100/1000 Mbps Ethernet (Intel I225-LM) 2 x 10/100/1000 Mbps Ethernet (Intel I225-LM) 2 x 10/100/1000 Mbps Ethernet (Intel I225-LM) 2 x 10/100/1000 Mbps Ethernet (Intel I225-LM)

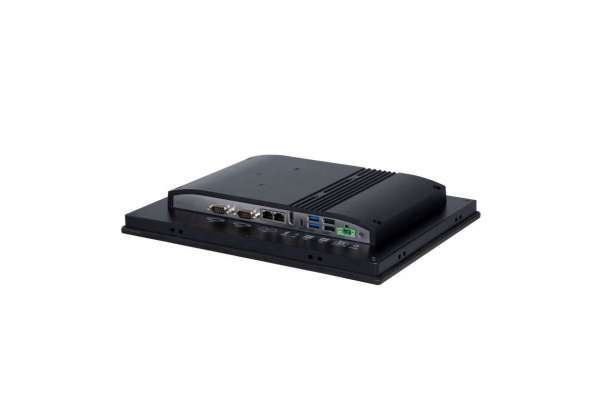

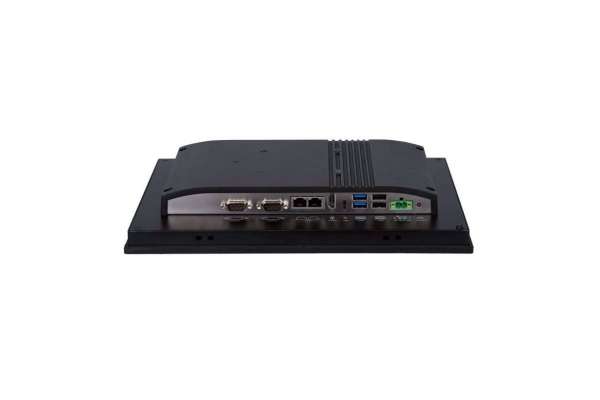

I/O
  • 2 x Serial ports: 1 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS)
  • 2 x USB 2.0, 2 x USB 3.0
  • 1 x Type C
  • 1 x HDMI1.4
  • 2 x Serial ports: 1 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS)
  • 2 x USB 2.0, 2 x USB 3.0
  • 1 x Type C
  • 1 x HDMI1.4
  • 2 x Serial ports: 1 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS)
  • 2 x USB 2.0, 2 x USB 3.0
  • 1 x Type C
  • 1 x HDMI1.4
  • 2 x Serial ports: 1 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS)
  • 2 x USB 2.0, 2 x USB 3.0
  • 1 x Type C
  • 1 x HDMI1.4
Expansion 1 x M.2 slot: E key for wireless module (Type: 2230) 1 x M.2 slot: E key for wireless module (Type: 2230) 1 x M.2 slot: E key for wireless module (Type: 2230) 1 x M.2 slot: E key for wireless module (Type: 2230)
Watchdog Timer 255 timer levels, set up by software 255 timer levels, set up by software 255 timer levels, set up by software 255 timer levels, set up by software

Physical Characteristics
Dimensions 317 x 246 x 52.7 mm 317 x 246 x 52.7 mm 392 x 314 x 55 mm 392 x 314 x 55 mm
Weight 3.16 kg 3.16 kg 5 kg 5 kg

OS Support

 Microsoft® Windows 10(64-bit), Linux, Android 10 Microsoft® Windows 10(64-bit), Linux, Android 10 Microsoft® Windows 10(64-bit), Linux, Android 10 Microsoft® Windows 10(64-bit), Linux, Android 10

Power Consumption
Input Voltage 12 ~ 30 VDC 12 ~ 30 VDC 12 ~ 30 VDC 12 ~ 30 VDC
Power Consumption 33W (Burn-in test 8.1 in Windows 10, 64-bit) 33W (Burn-in test 8.1 in Windows 10, 64-bit) 36.5W (Burn-in test 8.1 in Windows 10, 64-bit) 36.5W (Burn-in test 8.1 in Windows 10, 64-bit)

LCD
Display Type 12" TFT LCD (LED backlight) 12" TFT LCD (LED backlight) 15" TFT LCD (LED backlight) 15" TFT LCD (LED backlight)
Resolution 1024 x 768 1024 x 768 1024 x 768 1024 x 768
Viewing Angle 85 (left), 85 (right), 89 (up), 89 (down) 85 (left), 85 (right), 89 (up), 89 (down) 80 (left), 80 (right), 88 (up), 88 (down) 80 (left), 80 (right), 88 (up), 88 (down)
Luminance (cd/m2 ) 500 500 300 300
Contrast Ratio 1000 1000 2000 2000
Backlight Lifetime 30,000 hr (min.) 30,000 hr (min.) 70,000 hr (min.) 70,000 hr (min.)

Touchscreen
Touch Type ELO 5-wire resistive touch Projected Capacitive Multi-touch ELO 5-wire resistive touch Projected Capacitive Multi-touch
Light Transmission 80±5% at 550 nm wavelength 88±2% 80±5% at 550 nm wavelength 88±2%
Controller USB interface USB interface USB interface USB interface
Durability (Touches) Greater than 35 million touches in one location without failure Cover glass > 7H Greater than 35 million touches in one location without failure Cover glass > 7H

Environment
Operating Temperature 0 ~ 50 °C (32 ~ 122 °F) 0 ~ 50 °C (32 ~ 122 °F) 0 ~ 50 °C (32 ~ 122 °F) 0 ~ 50 °C (32 ~ 122 °F)
Storage Temperature -20 ~ 60 °C (-4 ~ 140 °F) -20 ~ 60 °C (-4 ~ 140 °F) -20 ~ 60 °C (-4 ~ 140 °F) -20 ~ 60 °C (-4 ~ 140 °F)
Relative Humidity 10 ~ 95% @ 40 °C (non-condensing) 10 ~ 95% @ 40 °C (non-condensing) 10 ~ 95% @ 40 °C (non-condensing) 10 ~ 95% @ 40 °C (non-condensing)
Shock Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27 Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27 Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27 Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64 Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64 Operating Random Vibration Test 5 ~ 500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64 Operating Random Vibration Test 5 ~ 500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64
EMC CE, FCC Class B, BSMI, UKCA CE, FCC Class B, BSMI, UKCA CE, FCC Class B, BSMI, UKCA CE, FCC Class B, BSMI, UKCA
Safety CB, CCC, BSMI, UL CB, CCC, BSMI, UL CB, CCC, BSMI, UL CB, CCC, BSMI, UL
Front Panel Protection IP66 compliant IP66 compliant IP65 compliant IP65 compliant
