Capacity Touch Extended T range High Brightness Input Wide range Intel Core i3 Intel Core i5 Intel Core i7 IP66 Screen 16:9 Screen Size 12"

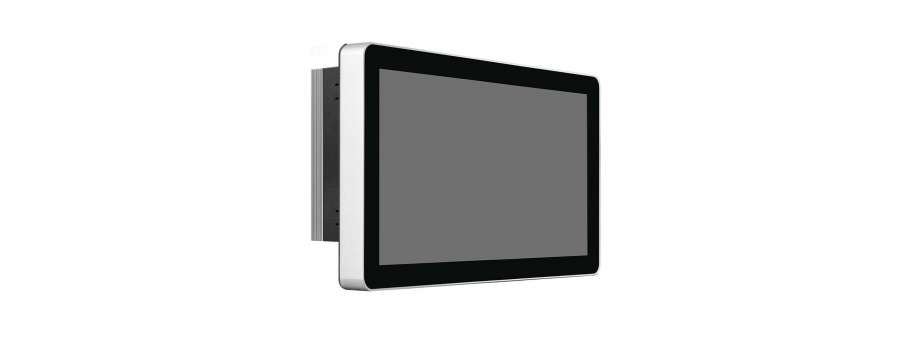

12.1" P-cap Panel PC with 7th/6th Gen KabyLake-U/Skylake-U Core™ i7/i5/i3, IP65 / 66 ELGENS PC-LPC-P121W

Price and avalability

Partnumber Description Price VAT incl Avalability
LPC-P121W-36 Промисловий панельний комп'ютер Elgens LPC-P121W 12.1" (1280*800) Bezel-Free P-cap Panel PC, Kabylake-U i5-6300U, IP65 Aluminum Front Bezel, CFast socket, DC 12~24V(Optional 9~36VDC available)  170 119,0
LPC-P121W-3K3 Промисловий панельний комп'ютер Elgens LPC-P121W 12.1" (1280*800) Bezel-Free P-cap Panel PC, Kabylake-U i3-7100U, IP65 Aluminum Front Bezel ,CFast socket, DC 12~24V (Optional 9~36VDC available)  128 432,0
LPC-P121W-3K5 Панельний комп'ютер Eldgens 12.1" (1280*800) Bezel-Free P-cap Panel PC, Kabylake-U i5-7300U, IP65 Aluminum Front Bezel, CFast so  147 100,0
WFK-024 WiFi модуль Elgens, WiFi kits w/ cable & Antenna (2.4GHz, 802.11 b/g/n, 1T1R)  2 767,6
  • 7th/6th Gen Core™ i7/i5/i3
  • IEC60945 Certified
  • IP65 / 66 Front Panel
  • -30°C Cold Start
  • Fanless Design
  • 3-Pin Power Input Terminal Block
  • DC 12~24V Wide Range Power Input
  • 1280*800 Resolution
  • 500 nits LED Backlight
  • Optional 1000 nits LED Backlight
  • Optional to Resistive Touch

Additional information

System

Processor 7th/6th Gen KabyLake-U/Skylake-U Core™ i7/i5/i3
System Memory DDR4 2133 MHz SO-DIMM, up to 16 GB

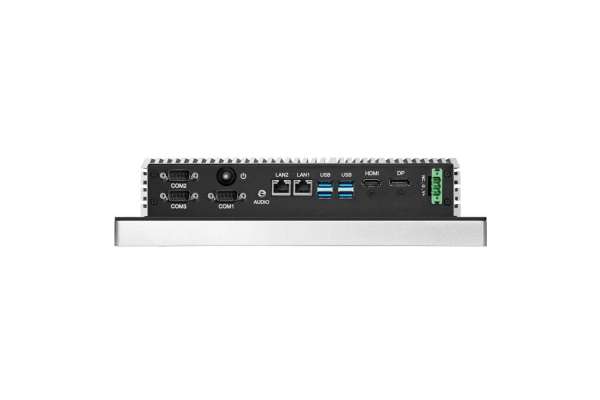

External I/O Port
  • 4 x USB 3.0
  • 2 x GbE LAN (I210-AT & I219LM, AMT 11.x supported)
  • 1 x Display Port
  • 1 x HDMI
  • 2 x RS-232
  • 1 x RS-232/422/485 (COM1)
  • 1 x Audio
  • 1 x Power press button
  • 1 x 3-Pin Power Input
Storage

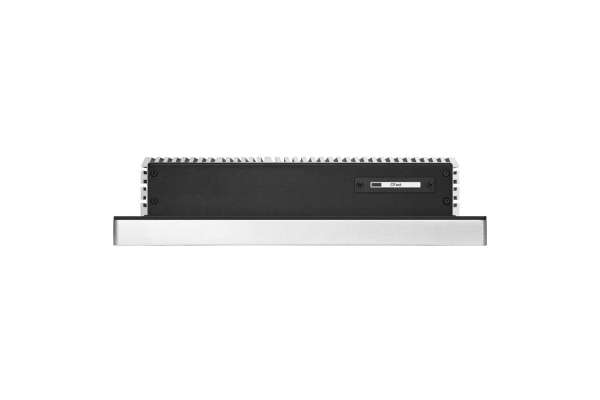

  • 1 x CFast Slot, Push-in/ Push-out Ejector
  • 1 x mSATA (full size mini-PCIe)
Expansion 2 x MiniPCIe Slot
Operating System
  • 6th Gen CPU for Win 7 Pro/ WES7 / Win 8 / Win 10
  • 7th Gen CPU for Win 10
LCD
Display Type 12.1″ TFT-LCD
Max. Resolution 1280*800
Max. Color 262K / 16.7M
Luminance (cd/m2) 500nits
View Angle 89 / 89 / 89 / 89
Backlight Lifetime 30,000hrs

Touch Screen

Type
Power Requirement 12.1″ P-cap USB interface
Power Type
  • 3-Pin Power Input Terminal Block
  • DC 12~24V Wide Range Power Input

Mechanical

Construction Aluminum Front Bezel and Case
IP Rating Front Panel IP65 / IP66 Compliant
Mounting VESA / Panel Mount (Optional)
Dimension 303.52 x 205.60 x 83

Environment

Operating Temp. -30~70 °C,IEC-60068-2-1/2/14
Storage Temp. -30~70 °C
Humidity 10~90% @40 °C, non-condensing
EMC
  • FCC / CE Class A Certification
  • CE Class B Compliant
Vibration 1.5 Grms @10~500Hz, IEC-60068-2-64
