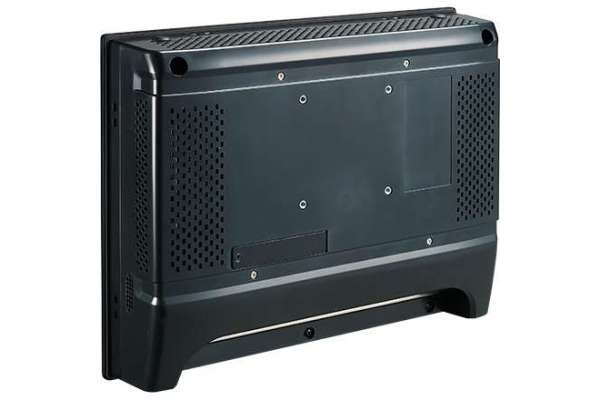

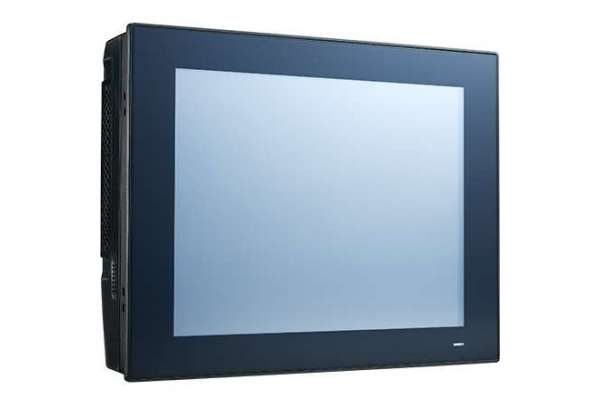

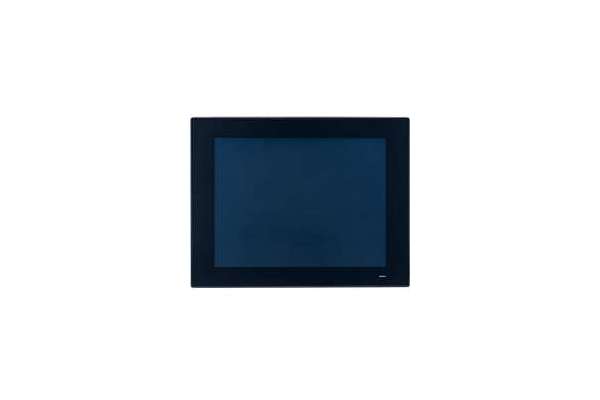

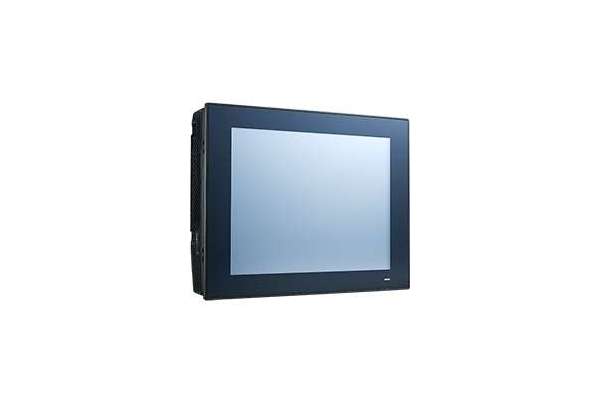

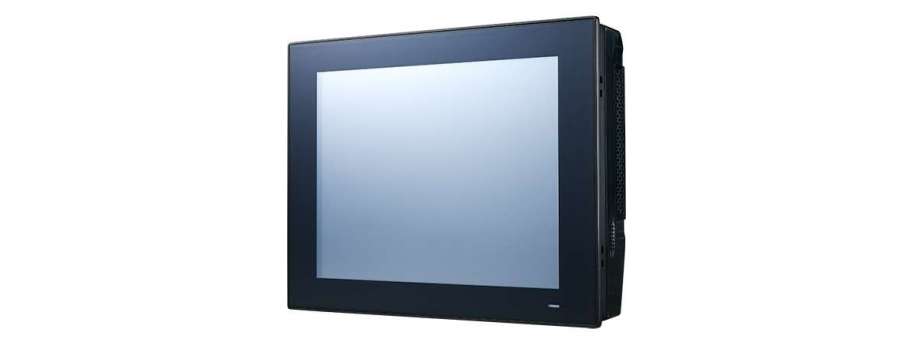

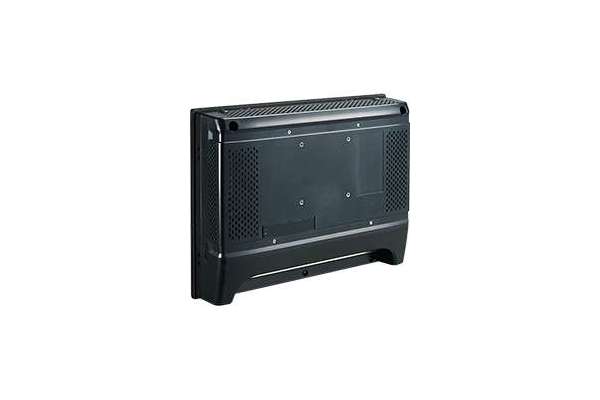

12.1" Panel PC with 8/9th Generation Intel® Core™ i/Celeron® Processor Advantech PPC-6121

Price and avalability

Partnumber Description Price VAT incl Avalability
PPC-6121-R8IA Панельний комп'ютер Advantech 12.1" 8th Gen Intel® Core™ i/Celeron® CPU W/R_TS  79 097,8
PPC-6121-R8IAO PPC-6121-R8IA w/o audio function  79 097,8
PPC-6121-R8IAU 12.1" 8th Gen Intel Core i/Celeron CPU W/R_TS  82 782,4

The PPC-6121 is a 12.1" color TFT LCD panel PC that supports 8th/9th generation Intel® Core™ i/Celeron® processors for high-performance computing. Featuring various connectors, PPC-6121 can be easily installed to support diverse application. Additionally, the system’s user-friendly interface makes it ideal for information-based applications. The provision of 4 x RS-232, 1 x isolated RS422/485, and dual Intel® Gigabit Ethernet connectors with Intel® AMT support, as well as 1 x expansion slot, makes PPC-6121 a highly reliable and versatile display platform.

Features PPC-6121

  • 12.1" TFT XGA LCD panel with resistive touch control
  • 8th/9th generation Intel® Core™ i/Celeron® processor (thermal power design: 35W)
  • 2 x 260-pin SO-DIMM DDR4 2666 MHz (max. 32 GB)
  • 1 x M.2 2230 (E key)
  • 1 x mSATA bay (SATA SSD + mSATA support RAID 0&1)
  • 1 x Optional TPM2.0
  • 1 x Optional PCI/PCIe x4 expansion kit
  • 1 x Isolated RS422/485 (terminal block)
  • 1 x VGA and 1 x HDMI
  • Dual GbE with Intel® AMT12.0 support
Processor System
CPU I7-8700T i5-8500T I3-8100T Pentium G5400T Celeron G4900T i7-9700TE i5-9500TE i3-9100TE
Cores 6 6 4 2 2 8 6 4
Frequency 2.4 GHz (up to 4.0 GHz) 2.1 GHz (up to 3.5 GHz) 3.1 GHz 3.1 GHz 2.9 GHz 1.8 GHz (up to 3.8GHz) 2.2 GHz (up to 3.6GHz) 2.2 GHz (up to 3.2GHz)
L3 Cache 12 MB 9 MB 6 MB 4 MB 2 MB 12 MB 9 MB 6 MB
TDP 35W 35W 35W 35W 35W 35W 35W 35W

Additional information

Processor System

Chipset Q370
Memory 2 x 260-pin SO-DIMM DDR4 2666 MHz (max. 32 GB)
Storage
  • 1 x 2.5" SATA bay
  • 1 x mSATA bay (SATA SSD+mSATA support RAID 0&1)
Network (LAN) 2 x 10/100/1000 Mbps Ethernet (Intel I219-LM + Intel I211) , supports Intel AMT 12.0 (only i7 /i5 support)

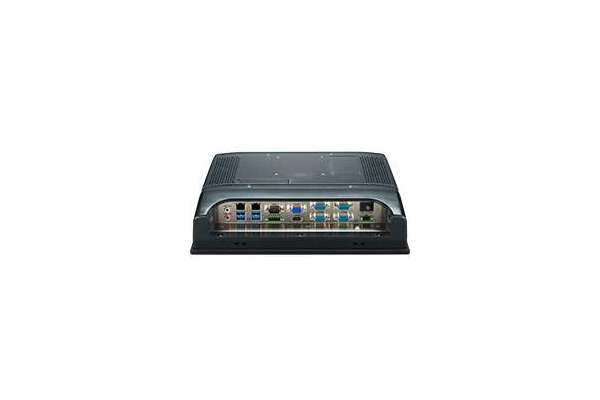

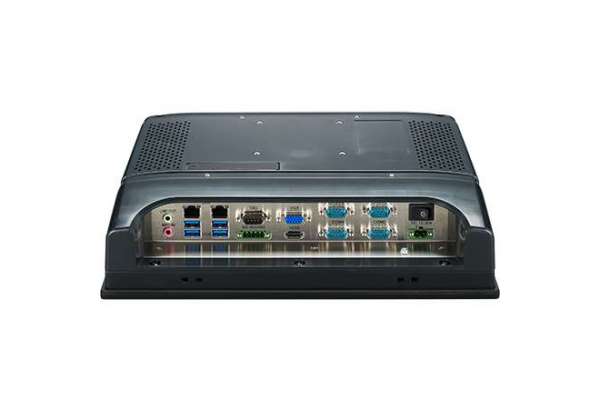

I/O ports
  • 4 x RS-232, 1 x RS-422/485 with 1K VDC isolation,
  • 4 x USB3.1
  • 1 x DB15 VGA, 1 x HDMI 1.4
  • 1 x Mic in, 1 x Line out
  • 1 x GPIO(TTL, 8 pin programmable)
  • 1 x TPM2.0 (optional)
Expansion
  • 1 x M.2 2230(E key)
  • 1 x PCIe x4 or 1 x PCI (optional)
Watchdog Timer 255 timer levels; setup by software
Speaker 2 x 1W
SYS Fan 40 x 40 x 10 mm (1.57 x 1.57 x 0.39 in)

Physical Characteristics

Dimensions 317 x 246 x 73mm(12.48 x 9.69 x 2.87 in)
Weight 3.8 kg (8.38 lb)

OS Support

OS Support Microsoft® Windows 10 64bit, Linux (Ubuntu; Fedora 28)

Power Consumption

Input Voltage 12 ~ 30VDC
Power Consumption 120W (Burn-in test 8.1, Windows 10 64bit, i7-8700T, 16G RAM, 500G HDD)

LCD Display

Display Type 12.1" TFT LCD panel
Max. Resolution 1024 x 768
Viewing Angle 89 (left), 89 (right), 89 (up), 89 (down)
Luminance (cd/m2 ) 600
Contrast Ratio 1000
Backlight Lifetime 50,000 hr (min.)

Touchscreen

Touch Type 5-wire resistive
Light Transmission 80±5% at 550nm wavelength
Controller USB interface
Durability (Touches) Greater than 35 million touches in one location without failure

Environment

Operating Temperature 0 ~ 50 °C (32 ~ 122 °F)
Storage Temperature -40 ~ 90 °C (-40 ~ 194 °F)
Relative Humidity 10 ~ 95% @ 40 °C (non-condensing)
Shock Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration Operating Random Vibration Test 5 ~ 500Hz, 1Grms @with HDD, follow IEC 60068-2-64
EMC CE, FCC Class A, BSMI
Safety CB, UL,CCC, BSMI
Front Panel Protection IP65 compliant
