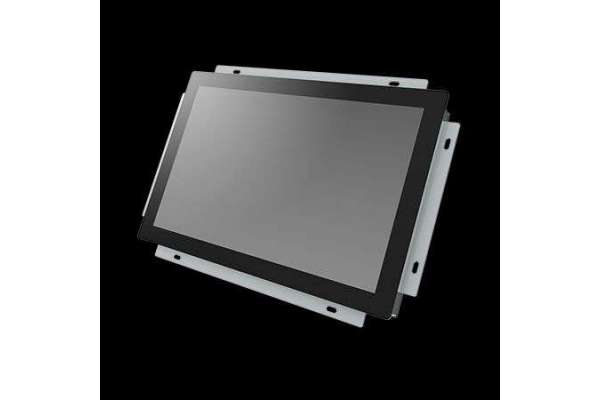

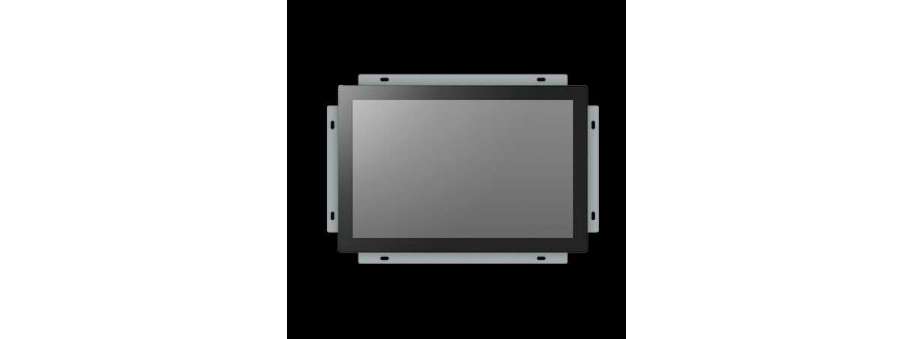

10" Ubiquitous Opened-Frame Touch Computer with Intel® Celeron® N3350 / Pentium® N4200 Advantech UTC-210G
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| UTC-210GP-ATO2E | 10" Pcap, N3350, 2G RAM, Openframe | 40 253,0 | |
| UTC-210GP-ATO1E | 10" Pcap, N4200, 2G RAM, Openframe | 46 009,1 |
- Low power and fanless system design
- Built-in Intel® Celeron® N3350 / Pentium® N4200
- 10.1" monitor with 16:10 widescreen display

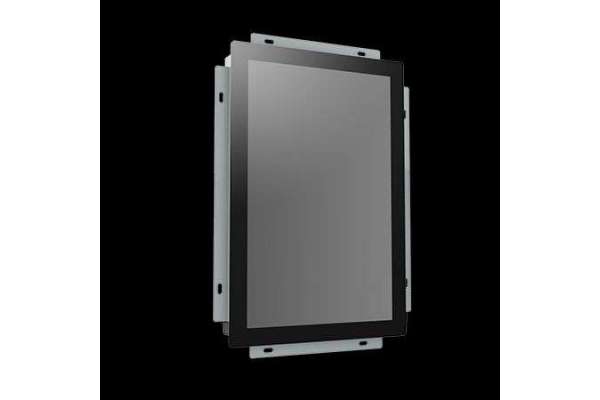

- Supports both landscape and portrait screen orientations
- PoE supported on Celeron® N3350 / Pentium® N4200 platform
UTC-210 features one-piece solution and fan-less design that easy to embedded into kiosk chassis or wall mount type. Continuation of the advantage from UTC series, It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas. The systems deliver updated information with well-designed interactive interfaces, fully ensure relevant content and targeted promotions are delivered.
Additional information
Processor System |
||
| CPU | Intel® Celeron® N3350 (UTC-210G) | Intel® Pentium® N4200 (UTC-210G) |
| Base Frequency | 1.10 GHz (Dual-Core) | 1.10 GHz (Quad-Core) |
| Cache | L2 Cache 1MB | L2 Cache 2MB |
| Memory | 1 x SO-DIMM DDR3L 1866 MHz up to 8 GB | 1 x SO-DIMM DDR3L 1866 MHz up to 8 GB |
| Storage | 1 x M.2 2242 SSD | 1 x M.2 2242 SSD |
| Network (LAN) | 2 x Gigabit Ethernet ports (Supports Wake on LAN) | 2 x Gigabit Ethernet ports (Supports Wake on LAN) |
I/O ports |
|
|
| Stereo Speaker (Optional) | 1 x 2W | 1 x 2W |
| Bus expansion | 1 x M.2 key2230, 1 x M.2 key2242 | 1 x M.2 key2230, 1 x M.2 key2242 |
| Dimensions (W x H x D) | 247 x 165.6 x 33.2 mm | 247 x 165.6 x 33.2 mm |
| Weight | 1.3kg (2.87lbs) | 1.3kg (2.87lbs) |
OS Support (Optional) |
|
|
Environmental Specifications |
||
| Operating Temperature | 0 ~ 40 °C (32 ~ 104 °F)* | 0 ~ 40 °C (32 ~ 104 °F)* |
| Relative Humidity | 10 ~ 95% @ 40 °C non-condensing | 10 ~ 95% @ 40 °C non-condensing |
| Vibration | 0.5G | 0.5G |
| Shock | 10G peak acceleration (11 msec. duration) | 10G peak acceleration (11 msec. duration) |
| Certification | CE, FCC | CE, FCC |
Power Supply |
||
| DC Input Rating | 12 V/3 A ~ 24 V/1.5 A, 36W ITE Adapter | 12 V/3 A ~ 24 V/1.5 A, 36W ITE Adapter |
| PoE | Optional IEEE 802.3at/30W | Optional IEEE 802.3at/30W |
| Power consumption |
|
|
LCD Display |
||
| Size/Type | 10.1" TFT LCD with LED backlight | 10.1" TFT LCD with LED backlight |
| Max.Resolution | 1280 x 800 | 1280 x 800 |
| Max. Color | 16.7M | 16.7M |
| Pixel Pitch (um) | 169.5 x 169.5 | 169.5 x 169.5 |
| Brightness (cd/m2 ) | 350 | 350 |
| View Angle | 170°/ 170° | 170°/ 170° |
Touch Screen Option (PE/GE) |
||
| Type | Projected Capacitive. Glass Panel | Projected Capacitive. Glass Panel |
| Light Transmission | 80% ± 5% / 90% | 80% ± 5% / 90% |
| Controller | USB Interface | USB Interface |
