10" Industrial-Grade Tablet with 7th Generation Intel® Core™ i3/i5/i7/Celeron® Processor Advantech PWS-872
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| PWS-872-3S6W0X000 | Промисловий планшет PWS-872 - i3/STD/DDR4G/SSD64G/WiFi/BT/WIN10 | 191 712,0 | |
| PWS-872-3S6W4X200 | i3/STD/DDR4G/SSD64G/WiFi/BT/LTE-U/W10/2D | 225 484,0 | |
| PWS-872-3S6W6X200 | Захищений планшетний комп'ютер Advantech PWS-872, 10"/IP65/ i3/STD/DDR4G/SSD64G/WiFi/BT/LTE-U/W10/2D | 225 484,0 | |
| PWS-872-5S6W4X200 | i5/STD/DDR4G/SSD64G/WiFi/BT/LTE-U/W10/2D | 250 046,0 | |
| PWS-872-5S6W6X200 | i5/STD/DDR4G/SSD64G/WiFi/BT/LTE-E/W10/2D | 250 046,0 | |
| PWS-872-7S6W4X200 | i7/STD/DDR4G/SSD64G/WiFi/BT/LTE-U/W10/2D | 286 888,0 | |
| PWS-872-7S6W6X200 | i7/STD/DDR4G/SSD64G/WiFi/BT/LTE-E/W10/2D | 286 888,0 | |
| PWS-872-CS6W0X000 | Cel/STD/DDR4G/SSD64G/WiFi/BT/WIN10 | 150 264,0 |

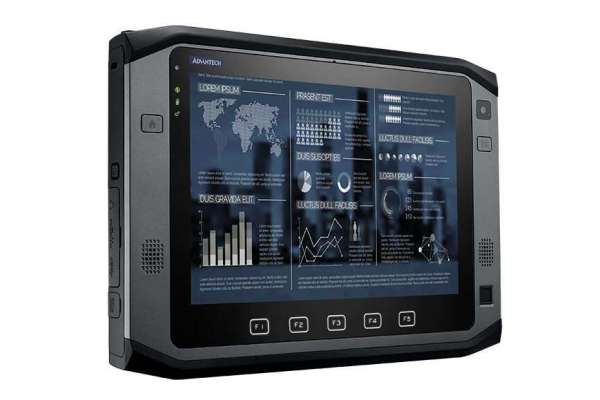

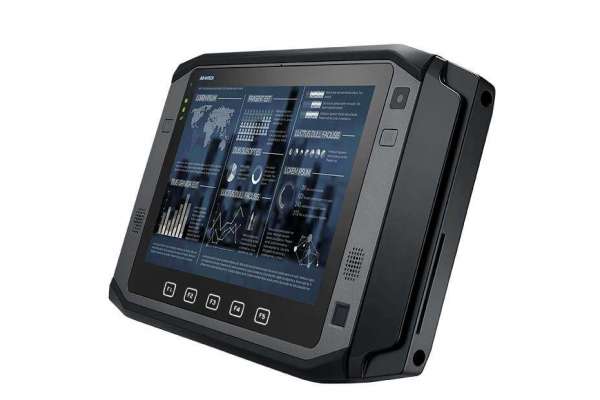

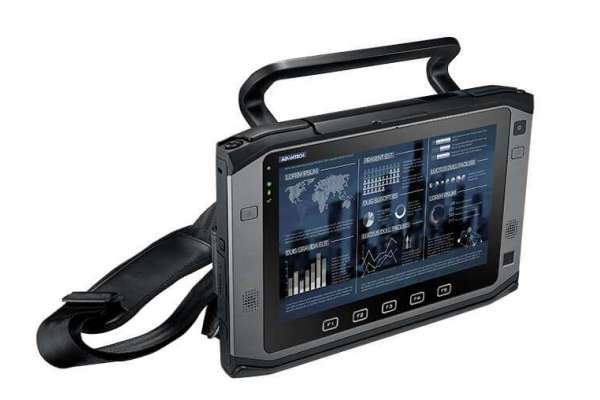

PWS-872 is an industrial-grade tablet equipped with an Intel® Core™ i3/i5/i7/Celeron® processor, 10.1" WUXGA LED display with multi-touch PCAP control, mSATA SATA III SSD storage, multiple I/O, and Wi-Fi (802.11 a/b/g/n/ac), NFC, 3G/4G LTE, and Bluetooth 4.1 communication technologies. The built-in front (2M) and rear (8M) cameras, 1D/2D barcode scanner, and NFC reader provide convenient data collection tools, and the high-brightness sunlight-readable display supports outdoor applications. For mobile field-service applications, PWS-872 can be integrated with a hot-swappable external battery that supports up to 11 hours operation to enable long-duration use. Designed for harsh environments, PWS-872 is also MIL-STD-810G certified for shock and vibration tolerance, IP65 rated for protection from water and dust ingress, and can withstand drops of up to 4 ft. Moreover, PWS-872 can be integrated with a wide range of peripherals, such as a vehicle docking station, multi-bay battery charger, universal cover, and various I/O extension modules, to provide application-specific solutions.
- 7th generation Intel® Core™ i3/i5/i7/Celeron® processor with integrated Intel® Turbo Boost technology
- 10.1" high-brightness WUXGA LED display with scratch-resistant Corning® Gorilla® Glass 3 panel
- Multi-touch PCAP touchscreen with support for gloved operation
- Rugged design with MIL-STD-810G certification, IP65 rating, and 4-ft. drop tolerance
- 4G LTE, WLAN (802.11 a/b/g/n/ac), Bluetooth 4.1, and GPS modules with BeiDou/GLONASS support
- Built-in front and rear cameras, 1D/2D barcode scanner, and NFC RFID reader
- Hot-swappable battery supports up to 11 hours operation (The estimated battery life is based on MobileMark® 2014 benchmark. Actual battery performance will vary according to system settings and configuration.)
- Microsoft® Windows 10 OS

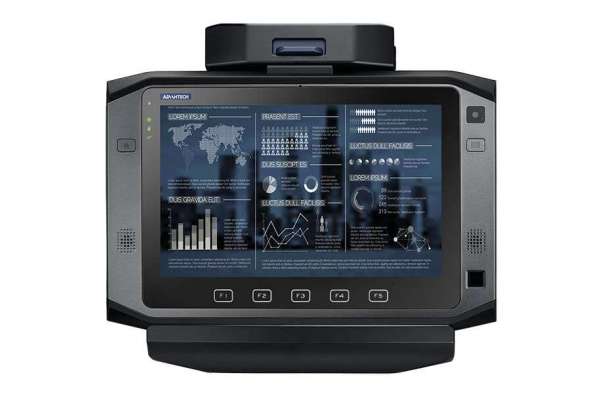

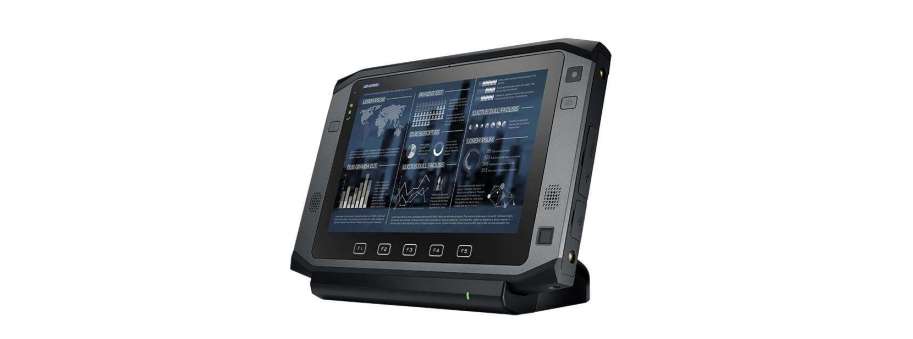

- Optional peripherals include vehicle docking station, desk docking station, and multiple extension modules
Additional information
|
Part Number |
PWS-872-3S6W0X000 | PWS-872-3S6W4X200 | PWS-872-3S6W6X200 | PWS-872-5S6W4X200 | PWS-872-5S6W6X200 | PWS-872-7S6W4X200 | PWS-872-7S6W6X200 | PWS-872-CS6W0X000 |
System |
||||||||
|
CPU |
Intel Celeron 2980U Dual-core, 1.6 GHz |
Intel® Core™ i3 Processor 1.7 GHz 4010U |
Intel® Core™ i3 Processor 1.7 GHz 4010U |
Intel® Core™ i5 Processor 1.9 GHz 4300U with Turbo Boost to 2.9GHz |
Intel® Core™ i5 Processor 1.9 GHz 4300U with Turbo Boost to 2.9GHz |
Intel® Core™ i7 Processor 1.7 GHz 4650U with Turbo Boost to 3.3 GHz |
Intel® Core™ i7 Processor 1.7 GHz 4650U with Turbo Boost to 3.3 GHz |
Intel Celeron 2980U Dual-core, 1.6 GHz |
|
OS |
Win10 IOT |
Win10 IOT |
Win10 IOT |
Win10 IOT |
Win10 IOT |
Win10 IOT |
Win10 IOT |
Win10 IOT |
|
System Memory |
1 x SO-DIMM socket, Up to 4GB DDR3L-1066 Non-ECC memory module (Default configuration: 2GB) |
1 x SO-DIMM socket, Up to 4GB DDR3L-1066 Non-ECC memory module (Default configuration: 2GB) |
1 x SO-DIMM socket, Up to 4GB DDR3L-1066 Non-ECC memory module (Default configuration: 2GB) |
1 x SO-DIMM socket, Up to 4GB DDR3L-1066 Non-ECC memory module (Default configuration: 2GB) |
1 x SO-DIMM socket, Up to 4GB DDR3L-1066 Non-ECC memory module (Default configuration: 2GB) |
1 x SO-DIMM socket, Up to 4GB DDR3L-1066 Non-ECC memory module (Default configuration: 2GB) |
1 x SO-DIMM socket, Up to 4GB DDR3L-1066 Non-ECC memory module (Default configuration: 2GB) |
1 x SO-DIMM socket, Up to 4GB DDR3L-1066 Non-ECC memory module (Default configuration: 2GB) |
Storage |
||||||||
|
mSATA |
SSD 64GB |
SSD 64GB |
SSD 64GB |
SSD 64GB |
SSD 64GB |
SSD 64GB |
SSD 64GB |
SSD 64GB |
RF Function |
||||||||
|
WLAN + Bluetooth |
Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Yes |
|
GNSS |
No | No | No | No | No | No | No |
No |
|
WWAN |
NA |
LTE-US |
LET-EU |
LTE-US |
LTE-US |
LTE-US |
LET-EU |
NA |
