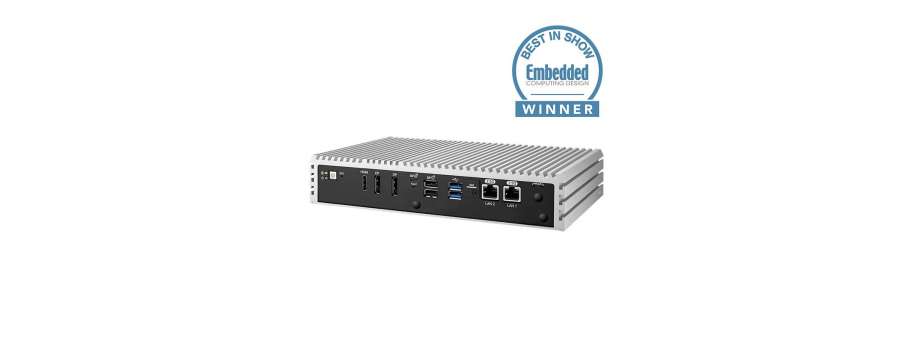

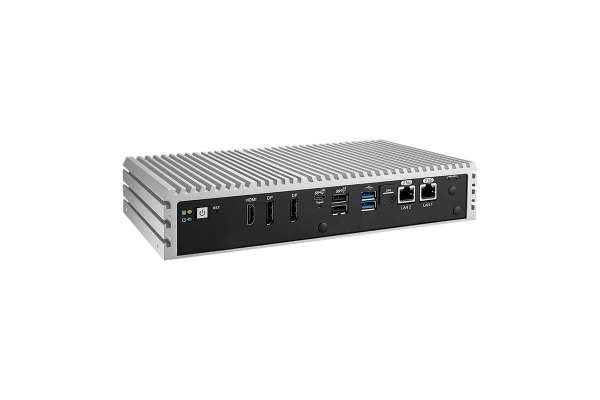

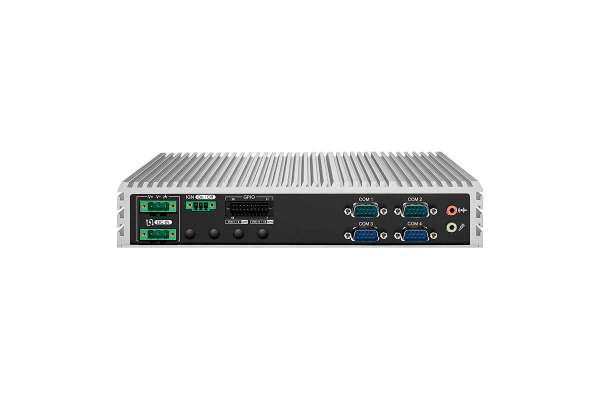

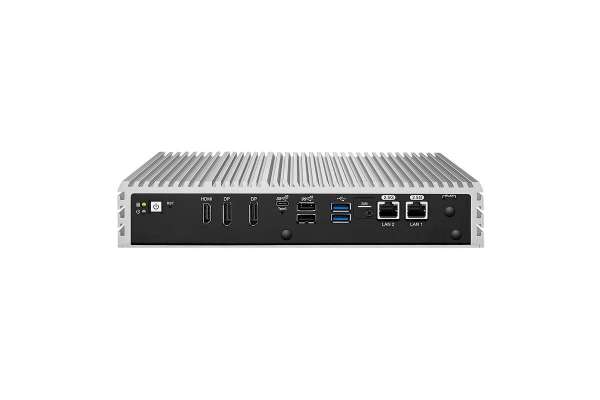

EN50155 & EN60945 Certified Marine-grade Rugged Embedded System. Powered by 13th Gen Intel® Core™ i7/i5 Vecow ECS-4700-2G
The Vecow ECS-4700 is an EN50155 & EN60945 Certified Marine-grade Rugged Embedded System. Powered by 13th Gen Intel® Core™ i7/i5 Processor with Intel® SoC and a 28W TDP CPU, the ECS-4700 is well-suited for AI applications in harsh environments. It features a marine-grade design, is EN60945 compliant, has isolated power protection, and includes 6 GigE LAN ports with 4 PoE+, 2 DP, and 1 USB Type-C with display function up to 4K. The ECS-4700 supports DDR5 memory up to 96GB, DC 9V to 50V Redundant Power Input, Software Ignition Control, and is fanless with an extended temperature range of -25°C to 75°C.
- Low-power 13th Gen Intel® Core™ i7/i5 Processor (Raptor Lake-P), 28W TDP CPU
- Marine-grade Designs, EN60945 EMC compliant
- Supports Intel® vPro, TCC, TSN, and TPM 2.0
- 2 2.5GigE LAN
- 2 USB 3.2 Gen 2, 1 USB 3.2 Gen 2x2 Type-C supports up to 20Gbps data transfer
- Compact Design, fanless -25°C to 75°C Operating Temperature
- DC 9V to 50V Redundant Power Input, Software Ignition Power Control
- Fully supports Intel OpenVINO toolkit for AI Computing
- Supports 5G/WiFi/4G/LTE/GPRS/UMTS Wireless Communication
Additional information
System |
|
| Processor |
- Onboard 14-core 13th Gen Intel® Core™ i7-1370PE Processor (Raptor Lake-P) - Onboard 10-core 13th Gen Intel® Core™ i7-1365UE Processor (Raptor Lake-P) - Onboard 10-core 13th Gen Intel® Core™ i5-1345UE Processor (Raptor Lake-P) |
| Chipset | Intel® SoC |
| GPU | Intel® Iris Xe |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 2 DDR5 5200MHz SO-DIMM, up to 96GB |
| OS | Windows 11, Windows 10, Linux |
I/O Interface |
|
| Serial | 4 COM RS-232/ 422/ 485 |
| USB |
- 2 USB 3.2 Gen2 Type-A - 1 USB 3.2 Gen 2x2 Type-C, support DP 1.4a - 2 USB 2.0 Type-A |
| GPIO | 16 GPIO |
Display |
- 2 DisplayPort 1.4a : Up to 3840 x 2160 @60Hz - 1 DisplayPort 1.4a : Up to 3840 x 2160 @60Hz by USB Type-C - 1 HDM I2.0 : Up to 3840 x 2160 @60Hz |
| LED | Power, HDD, PoE |
| SIM | 1 External Nano SIM Socket |
Expansion |
|
| M.2 |
- 1 M.2 Key B Socket (2280/3052, PCIe x2/USB 3 Default) with Internal SIM - 1 M.2 Key E Socket (2230, PCIe x1) |
Storage |
|
| SATA |
2 SATA III (6Gbps) support software RAID 0, 1 - 2.5" SSD/HDD internal bracket |
| M.2 | 1 M.2 Key M Socket (2280, PCIe x4) |
Audio |
|
| Audio Codec | Realtek® ALC888S-VD, 7.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
Ethernet |
|
| LAN 1 | Intel® I226 2.5GigE LAN supports TSN |
| LAN 2 | Intel® I226 2.5GigE LAN supports TSN |
Power |
|
| Power Input 1 | DC 9V to 50V, Redundant Power Input |
| Power Input 2 | DC 9V to 50V, Redundant Power Input |
| Power Interface | 3-pin Terminal Block : V+, V-, Frame Ground |
| Ignition Control | 16-mode Software Ignition Control |
| Remote Switch | 3-pin Terminal Block |
Others |
|
| TPM | Infineon SLB9672 supports TPM 2.0, SPI Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats |
Mechanical |
|
| Dimension | 256.8mm x 141.0mm x 48.1mm (10.11" x 5.55" x 1.89") |
| Weight | 2.1 kg (4.6 lb) |
| Mounting |
- Wallmount by mounting bracket - VESA Mount (Optional) - DIN Rail Mount (Optional) |
Environment |
|
| Operating Temperature | -25°C to 75°C (-13°F to 149°F) with air flow |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @75°C |
| Vibration | IEC 60068-2-64 |
| Shock | IEC 60068-2-27 |
| EMC | CE, FCC, EN50155, EN50121-3-2, EN60945 |
