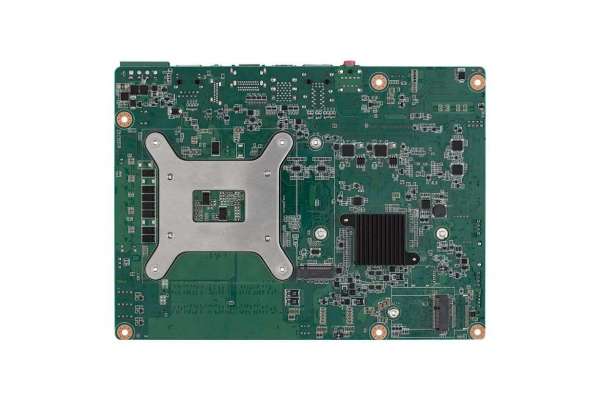

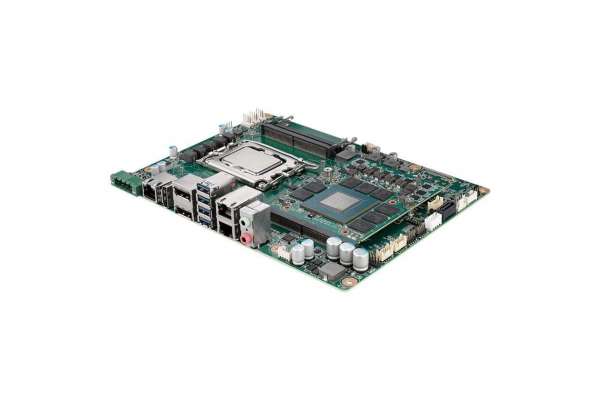

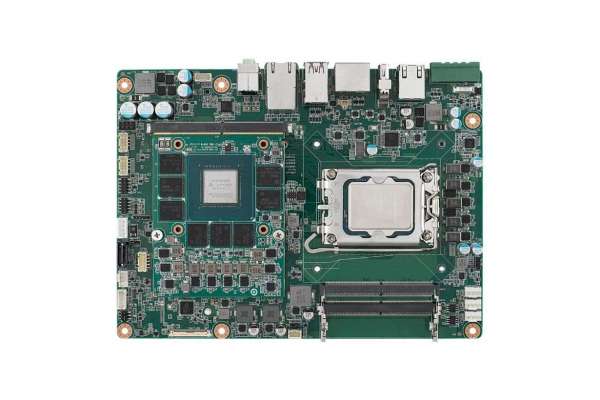

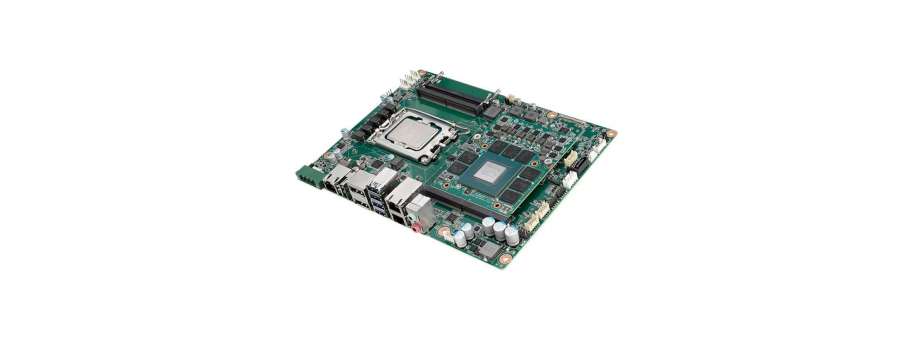

12/13/14th Gen Intel® Core™ Processor Nvidia MXM GPU Integration Advantech AIMB-292
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| AIMB-292Q-00A1 | Промислова материнська плата Advantech AIMB-292Q-00A1 14th LGA1700 Q670E w/ Nvidia A4500/3 GbE/3DP | 222 076,0 |
- 12/13/14th Gen Intel® Core™ Desktop Processors, max. 24Core, support Q670E chipset
- Integrated NVIDIA MXM Graphics
- Up to 96GB DDR5 5600 MT/s with two SO-DIMM
- Quadruple displays with 3 DP and 1 LVDS (or eDP), up to 4K
- Abundant Expansion: 1 M.2 M-key & 1 M.2 E-key (B-key by option), 4 USB 3.2 Gen2x1, 2 USB 2.0, 1 SATA III
- Qualified for Edge AI SDK of WISE-DeviceOn and Embedded Software APIs
For more information about the CPU, see the technical specification*
Additional information
Processor System |
|
| Chipset | Q670E |
| BIOS | AMI EFI 256 Mbit SPI |
Expansion Slot |
|
| M.2 |
|
Memory |
|
| Technology | Dual Channel DDR5, up to 5600 MT/s (non-ECC) |
| Max. Capacity | 96GB (up to 48GB per DIMM) |
| Socket | 2 x 262 pin DDR5 SO-DIMM |
Graphics |
|
| Native GPU | Intel® UHD Graphics 770 |
| Discrete GPU | Quadro® A4500 |
| Cores | 5,888 CUDA® cores |
| FP32 Performance | 17.66 (TFLOPS) |
| Memory | GDDR6 16GB |
Display |
|
| DP |
|
| LVDS or eDP | 1 (by pass mode), LVDS up to 1920x1200@60Hz, eDP up to 1920x1080@60Hz |
| Multi Displays |
|
Network |
|
| Ethernet | 10/100/1000/2500 Mbps |
| Controller |
|
| Connector | 3 x RJ45 |
Audio |
|
| Codec | Realtek ALC888S, High Definition Audio (HD), Line-Out (default) |
| Amplifier | Yes (Option, 3.2W) |
SATA |
|
| Max data transfer rate | 6.0 Gb/s |
| Channel | 1 (SATA III) |

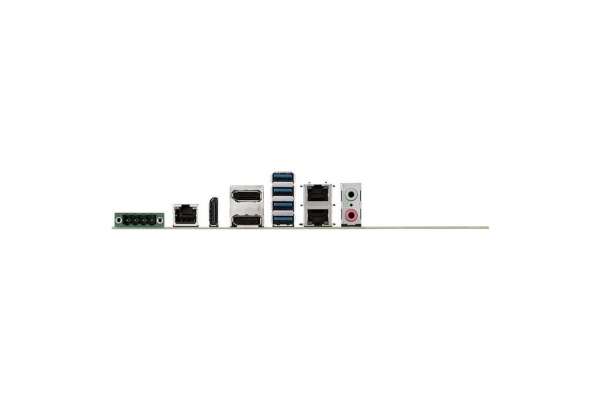

Rear I/O |
|
| DP | 3 |
| Ethernet | 3 |
| USB | 4 x USB 3.2 Gen2x1 |
| Audio | 1 (Line out by default, Line in/Line out/Mic in programable) |
| Power Connector | 1 x Terminal block (4P, Phoenix Contact) |
Internal Connector |
|
| USB | 2 x USB 2.0 |
| LVDS/eDP | 1 (LVDS or eDP by pass mode) |
| Serial | 2 (RS-232/422/485 with auto flow control) |
| SATA | 1 |
| M.2 |
|
| GPIO | 8-bit |
Watchdog Timer |
|
| Output | System reset |
| Interval | Programmable 1 ~ 255 (second or minute) |
Power Requirements |
|
| Input voltage | 24V DC-in |
| Connector | 4-pin Terminal block |
| Power consumption |
|
Environment |
|
| Temperature |

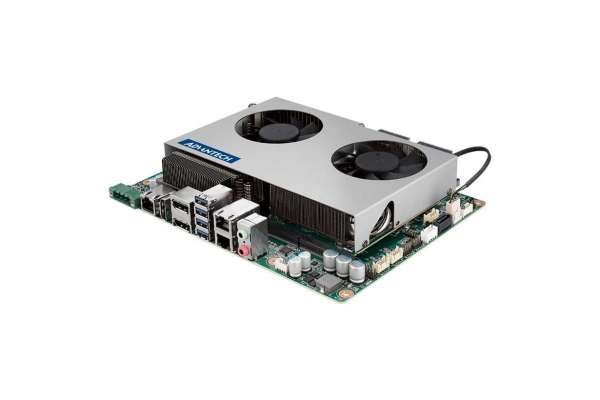

Operating: 0 ~ 55° C (32 ~ 131° F), depends on STD or THIN GPU cooler Non-Operating: -40 ~ 85° C (-40 ~ 185° F) |
Physical Characteristics |
|
| Dimensions | 170 mm x 230 mm (6.69" x 9.06") |
