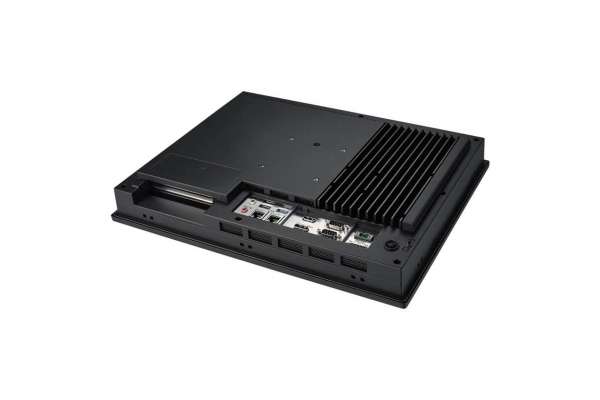

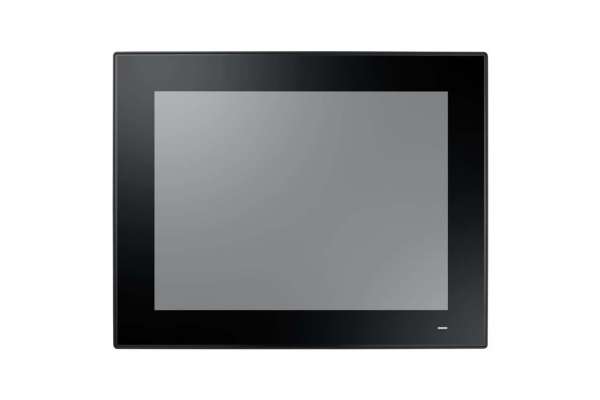

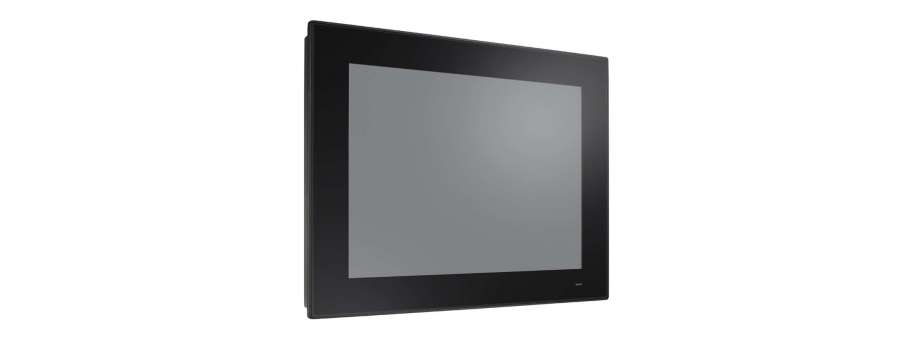

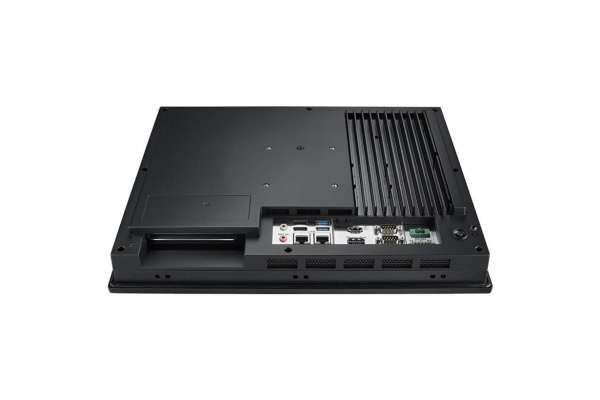

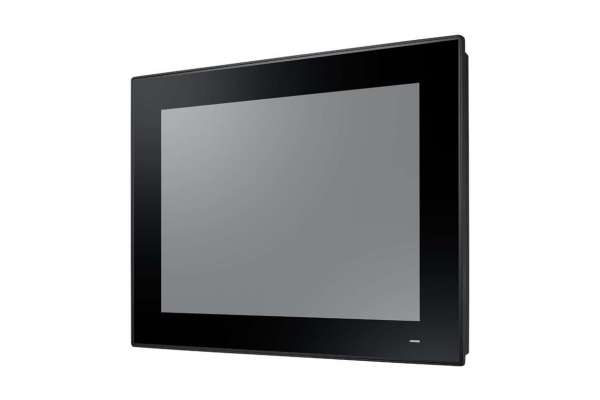

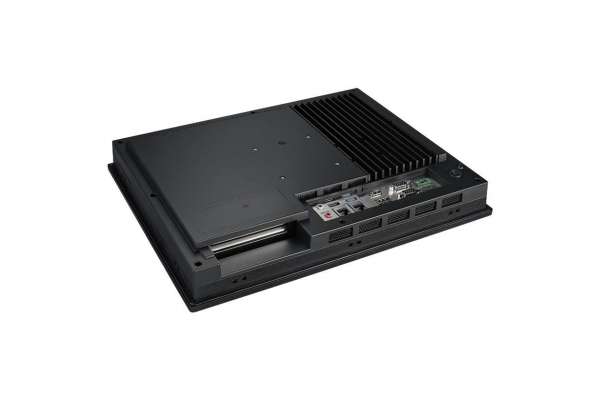

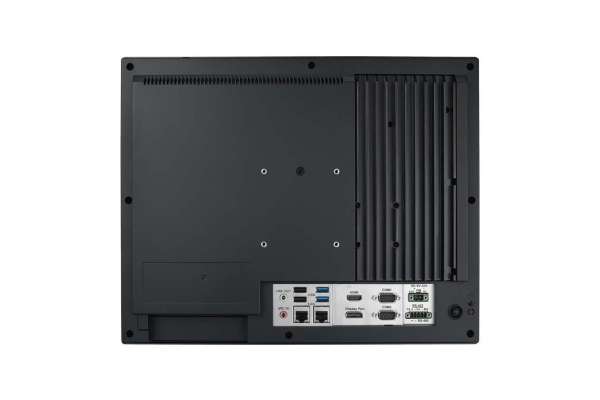

Fanless slim PC on Intel® Atom™ x6425E quad-core, 2.0 GHz processor with 1 x PCI/PCIe x1 expansion slot Advantech PPC-415 EHL
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| PPC-415-RX6A | Панельний комп'ютер Advantech, 15" PPC w/Intel x6425E, Res. | 76 197,4 |
The PPC-415 EHL is a 15" fanless panel PC equipped with a high-performance Intel® Atom™ x6425E quad-core, 2.0 GHz, processor that supports both a wide operating temperature range (-20 ~ 60 °C) and wide power input range (9 ~ 32 VDC). The provision of multiple I/O, including 4 x COM, 2 x USB 3.2, 1 x isolated RS-422/485, and dual Intel® Gigabit Ethernet, ensures easy integration and connectivity. With the inclusion of 1 x PCI/PCIe expansion slot, PPC-415 EHL can be integrated with fieldbus protocols or proprietary cards for increased application potential.
PPC-415 EHL is a modern replacement for PPC-3150
- 15" XGA TFT LCD with resistive (default) or projected capacitive (by request) touchscreen
- Intel® Atom™ x6425E quad-core, 2.0 GHz processor
- Fanless, slim design
- Supports 1 x 2.5" SATA and 1 x M.2 B key slot for expansion
- 1 x PCI/PCIe x1 expansion slot
- Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
- Wide range DC support (9 ~ 32 VDC)
- 1 x isolated RS-422/485 with automatic flow control
- Dual 2.5GBASE-T Ethernet supports Time-Sensitive Network (TSN) technology
- Optional GPIO (8 channels, TTL level)
Additional information
System |
|
| CPU | Intel® Atom™ x6425E quad core |
| Frequency | 2.0 GHz |
| L2 Cache | 1.5 MB |
| Memory | 1 x SODIMM DDR4 3200 MHz (max. 32 GB) |
| Storage |
|
| Network (LAN) | 2 x 10/100/1000/2500 Mbps Ethernet (Intel I226) |
| I/O |
|
| Expansion |
|
| Watchdog Timer | 255 timer levels, set up by software |
| Speaker | 2 x 1W |
Physical Characteristics |
|
| Dimensions | 392.2 x 313.5 x 55.1 (15.4 x 12.3 x 2.1 in) |
| Enclosure | Front bezel: Die cast aluminum alloy Rear: ABS |
| Mounting | Panel Mount (Default); VESA Mount/ Desktop/ Wall (optional) |
| Weight | 5.3 kg (11.68 lb) |
OS Support |
|
| OS Support | Microsoft® Win10 IOT LTSC (64-bit),Win11, Linux |
Power Consumption |
|
| Input Voltage | 9 ~ 32 VDC |
| Power Consumption | 50W (Burn-in test 8.1 in Windows 10, 64 bit) |
LCD |
|
| Display Type | 15" TFT LED panel |
| Max. Resolution | 1024 x 768 |
| Viewing Angle | 88 (left), 88 (right), 88 (up), 88 (down) |
| Luminance (cd/m2 ) | 500 |
| Contrast Ratio | 2500 |
| Backlight Lifetime | 70,000 (typ.) |
Touchscreen |
|
| Touch Type | 5-wire analog resistive |
| Light Transmission | 80+/-3% |
| Controller | USB interface |
Environment |
|
| Operating Temperature | -20 ~ 60 °C (-4 ~ 140 °F) |
| Storage Temperature | -40 ~ 60 °C (-40 ~ 140 °F) |
| Relative Humidity | 95% @ 40 °C (non-condensing) |
| Shock | Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27 |
| Vibration | Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64 |
| EMC | CE, FCC Class B, EN 61000-6-2, BSMI, VCCI, UKCA |
| Safety | CB, UL, CCC, UKCA |
| Front Panel Protection | IP66 compliant |
